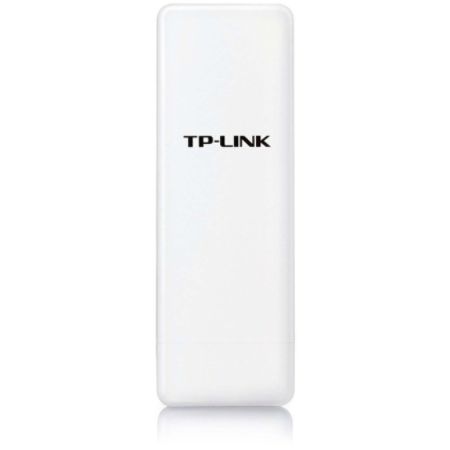

TP-LINK TL-WA7510N High Power Outdoor Wireless N150 Access Point, 5GHz 150Mbps, WISP/AP Router/AP, 15dBi antenna, Passive POE Item # 538436
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
538436
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
As a long range outdoor wireless device, the TL-WA7510N is designed to provide a WISP connection and long distance wireless networking solution. It operates seamlessly in the 5 GHz frequency spectrum and provides wireless data transfer rates of up to 150 Mbps. The device also features up to 500 mW wireless transmission power and has a built-in 15 dBi dual-polarized antenna which provides an efficient way to pick up and maintain a stable signal for a wireless network connection ranging multiple kilometers.
Product Details
| Item # | 538436 |
| Manufacturer # | LK8199 |
| Wireless Transmission Speed | 150 Mbit/s |
| power source | AC Adapter |
| Wireless Security | MAC address filter; 64/128/152-bit WEP; WPA; WPA2; WPA-PSK; WPA2-PSK; AES; TKIP |
| HDMI | No |
| Ethernet Port | Yes |
| Gigabit Ethernet Port | No |
| height | 2.4 in |
| System Requirements | Operating Systems:Windows 98SE; Windows NT; Windows 2000; Windows XP; Windows Vista; Windows 7; Mac OS X; NetWare; UNIX; Linux |
| UNII Maximum Frequency | 5.83 GHz |
| Number of Network (RJ-45) Ports | 1 |
| Certifications & Standards | FCC; CE |
| antenna type | Directional Antenna |
| Serial Port | No |
| PoE (RJ-45) Port | Yes |
| width | 9.8 in |
| package contents | TL-WA7510N Wireless Access Point; Power Supply Unit; Power Injector; Resource CD; Quick Installation Guide |
| 10Gigabit Ethernet Port | No |
| depth | 3.3 in |
| Product Name | TL-WA7510N Wireless Access Point |
| Total Number of Antennas | 1 |
| Antenna Gain | 15 dBi |
| manufacturer | TP-LINK Technologies Co., Ltd |
| VGA | No |
| Audio Line Out | No |
| Powerline | No |
| brand name | TP-LINK |
| Wireless LAN Standard | IEEE 802.11n |
| USB | No |
| UNII Band | Yes |
| Input Voltage | 12 V DC |
| Power Over Ethernet (PoE) Supported | PoE |
| Network (RJ-11) | No |
| Management Port | No |
| ISM Band | No |
| form factor | Pole-mountable |
| UNII Minimum Frequency | 5.18 GHz |
| warranty length | 3-year limited |
| model name | TL-WA7510N |
| Fast Ethernet Port | Yes |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Overview
-
What This Product Does
The 5GHz 150Mbps Outdoor Wireless Access Point TL-WA7510N is a long range outdoor wireless device designed to provide a WISP connection. It operates seamlessly in the 5GHz frequency spectrum and provides wireless data transfer rates of up to 150Mbps. The TL-WA7510N also features up to 500mw wireless transmission power and has a built-in 15dBi dual-polarized antenna which provides an efficient way to pick up and maintain a stable signal for wireless network connections that are miles away.
-
5GHz Connection Clarity - Fewer Disturbances, Higher Performance
Operating on the less crowded 5GHz band, the TL-WA7510N improves performance by effectively ensuring that the wireless signal is less congested. -
15dBi High-gain Antenna
The TL-WA7510N features a 15dBi dual-polarized antenna, which is a key feature used in building a long-distance Wi-Fi connection. It is designed with signal transmission covering 60 degrees on a horizontal plane and 14 degrees on a vertical plane, improving signal strength in a concentrated direction.
-
High Transmission Power - Breaking down the Barriers of Wi-Fi
With wireless transmission power of up to 500mw, the TL-WA7510N produces a powerful signal to overcome long distances. The signal can also be adjusted to high or low levels in order to be applied in various applications, including point-to-point or point-to-multiple-point remote solutions.
-
Professional Outdoor Design
TL-WA7510N is designed to work in harsh environments, even in the some of the world’s most hostile climactic conditions.
(1) Weatherproof Enclosure
With its outdoor weatherproof enclosure and high/low temperature endurance (-30°C~70°C) internal hardware, the AP can continue operating in various weather conditions: in sunshine or rainfall, wind, and snow.
(2) Special Protection for ESD and Lightning
The device’s built-in 15KV ESD and 4000V lightning protection design prevents storm/lightning surges and ensures reliable operation. Additionally, TL-WA7510N’s grounding terminal provides a more professional level of protection for expert users.
-
Multiple Applications
The TL-WA7510N is not limited to its default access point (AP) mode. It also supports AP Client Router (WISP Client), AP Router, Bridge, Repeater and Client modes, providing various wireless operating modes to accommodate as many applications as possible. In the end, this gives you a more dynamic and comprehensive experience when using the TL-WA7510N. -
Passive PoE Support for Flexible Deployment
Powered by a Passive PoE Injector, the TL-WA7510N can use an Ethernet cable to simultaneously send both data and electricity as far as 200 feet away. This feature multiplies deployment options, allowing you to place the AP in a position that is most convenient in order to get the best signal possible such as on the wall or the ceiling of your office. -
Intelligent Management Tools
Tool 1: Antenna AlignmentYou can use the antenna alignment tool to adjust the direction of their APs using a live signal strength meter to judge which direction is best.
Tool 2: ACK Timeout
The AP’s ACK timeout tool allows you to set a specific distance in order to establish the most robust wireless connection possible.
Tool 3: Ping Watch Dog
By setting some simple parameters with ping watch dog tool, you can maintain the ping command to check the quality of the wireless link and can reboot the remote AP if the wireless signal becomes worse or disconnects.
See More:
Product Views
Features
- 5GHz solution ensures fewer disturbances caused by other 2.4GHz radio devices and more stable
- High output transmission power and reception sensitivity optimized
- 15dBi directional antenna fit for various environments and boost your signal level.
- Weatherproof enclosure and lightning protection terminal integrated.
- Supports AP Client Router (WISP Client), AP Router and AP operation mode.
- Distance Adjustment for long range transmission
- Up to 60 meters (200 feet) of flexible deployment with included Power over Ethernet Injector
- Supports 15kV ESD Protection
- Supports 4000V Lightning Protection
- Supports Antenna Alignment
- Supports Ping Watch Dog and Wireless Speed Test
- Supports Layer 2 user Isolation
- Provides throughput monitor indicating the current wireless throughput.
- Provides WEP, WPA/WPA2, WPA-PSK/WPA2-PSK data security
- Provides external RP-SMA connector for higher gain antenna upgrade
Package Contents
- TL-WA7510N
- Power Supply Unit
- Power Injector
- Resource CD
- Quick Installation Guide
Compatibility
-
Work with Windows, Mac and Linux.
Datasheet
-
TL-WA7510N Datasheet
TL-WA7510N Datasheet - opens PDF
PDF, 823K, 2 pages
Warranty
- 2-Year Warranty
TP-LINK
